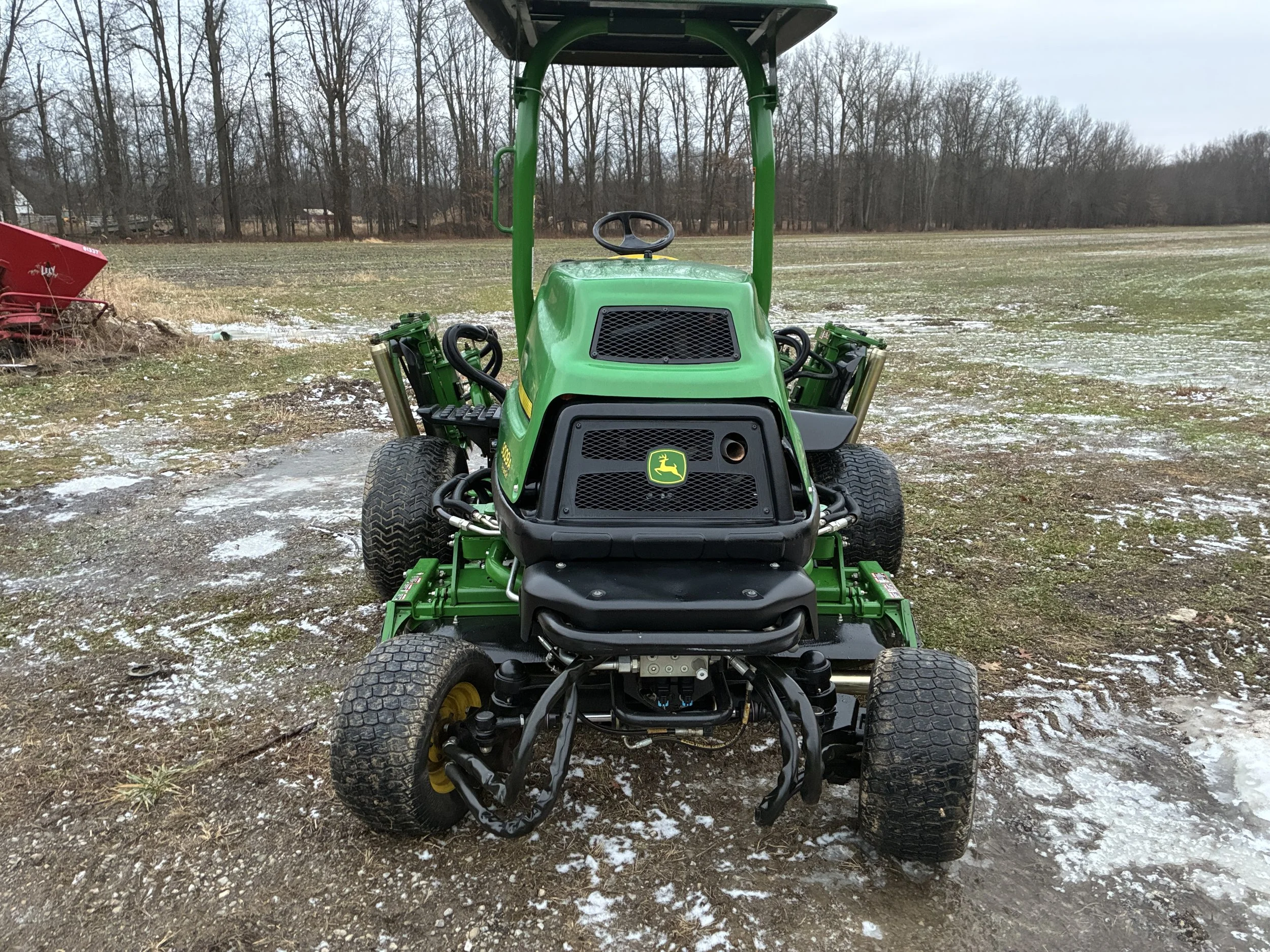

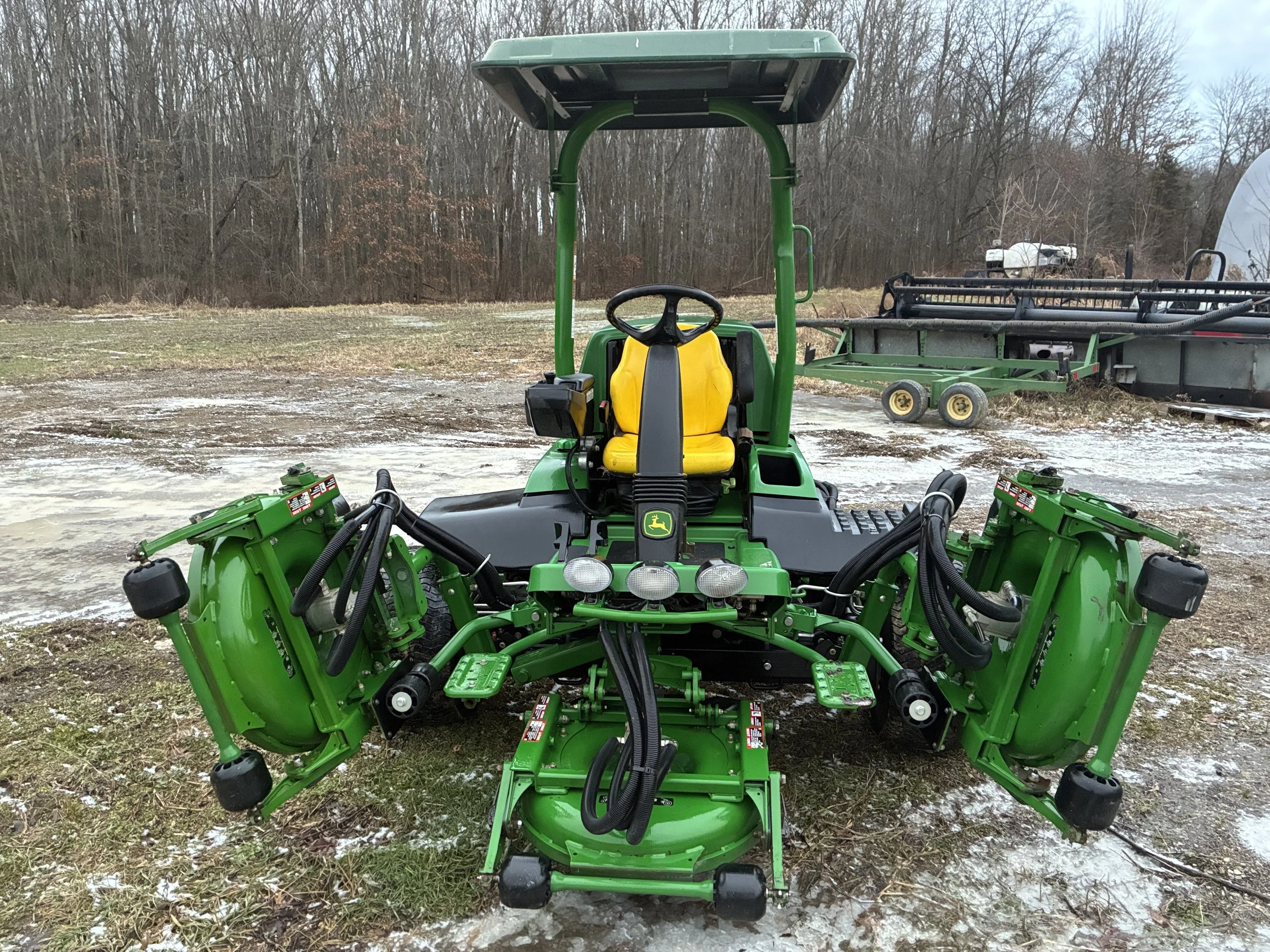

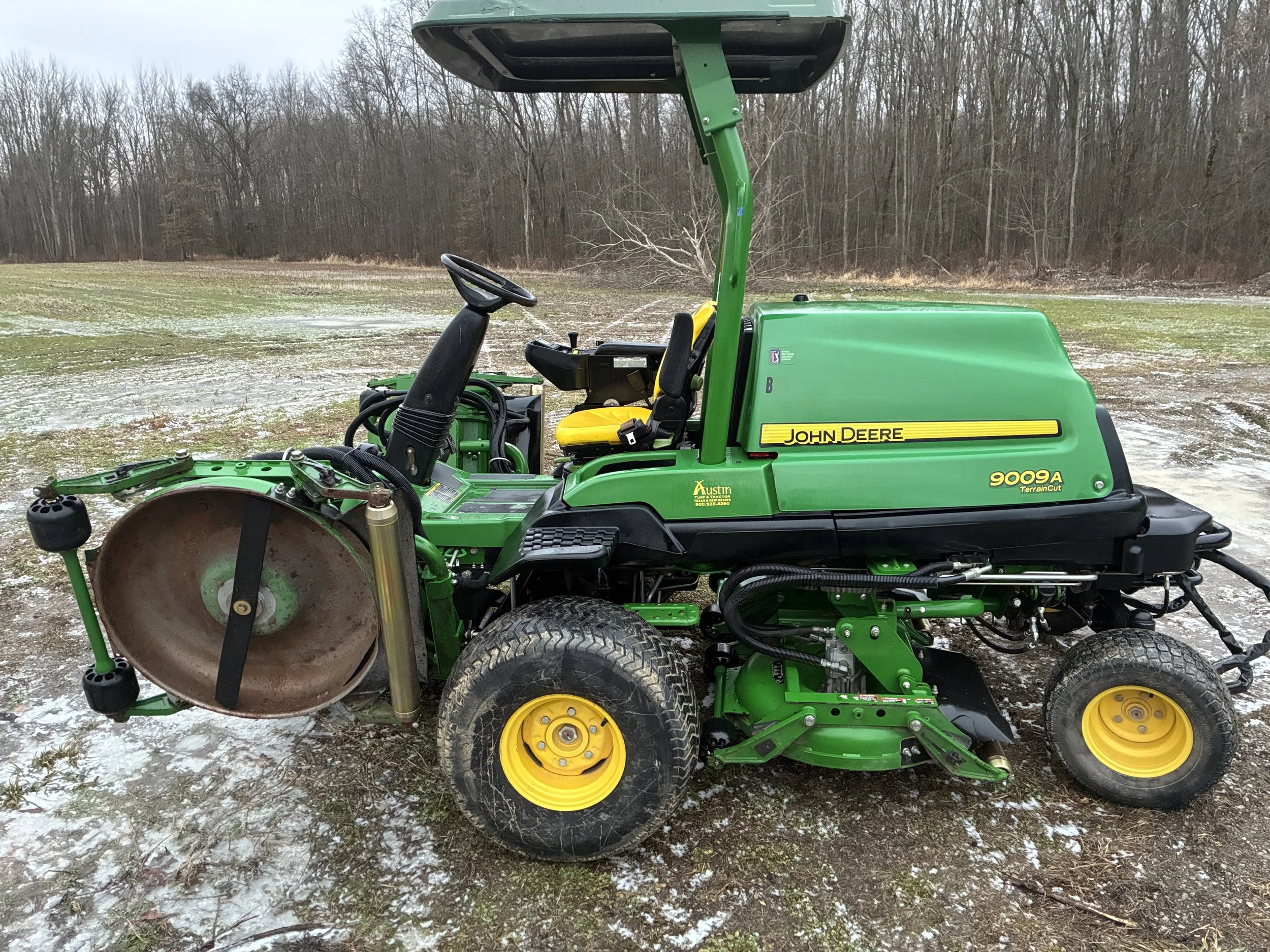

2019 John Deere 9009A rotary mower new air filter , new oil filter and oil, new blades , new brgs seals, cups in blade spindles , new hydraulic cylinder driver side front, new front and rear rollers , many new height adjusters. This unit is ready to mow snow.
The 2019 John Deere 9009A TerrainCut rough mower features a 55.6 hp turbocharged diesel engine, a 108-inch cutting width with five 27-inch independent rotary decks, and eHydro™ hydrostatic transmission. Designed for efficient large-area turf management, it includes GRIP all-wheel drive, a 16-gallon fuel tank, and a 0.75- to 4-inch cutting height.
Model: 4-cylinder John Deere TerrainCut™ 2.091 L Turbocharged Diesel
Horsepower: 55.6 hp gross at 2800 rpm
Compliance: Final Tier 4 (US/Canada)
Fuel Capacity: 16 U.S. gal
Cutting Capabilities
Total Width of Cut:108 in.
Deck Configuration: Five 27 in. floating rotary rear-discharge decks
Height of Cut:0.75 in. – 4 in.
Overlap: 6.75 in.
Type: eHydro™ servo-controlled hydrostatic transmission
Traction System: GRIP all-wheel drive (system reduces wheel slip by sending flow between front and opposite rear wheels)
Mowing Speed:0 – 8 mph
Transport Speed: 0 – 12.5 mph
Dimensions & Weights
Weight: Approximately approx 3,600 lbs
Height (with ROPS):87.4 in
Wheelbase: 68.9 in
Transport Width: 90 in.

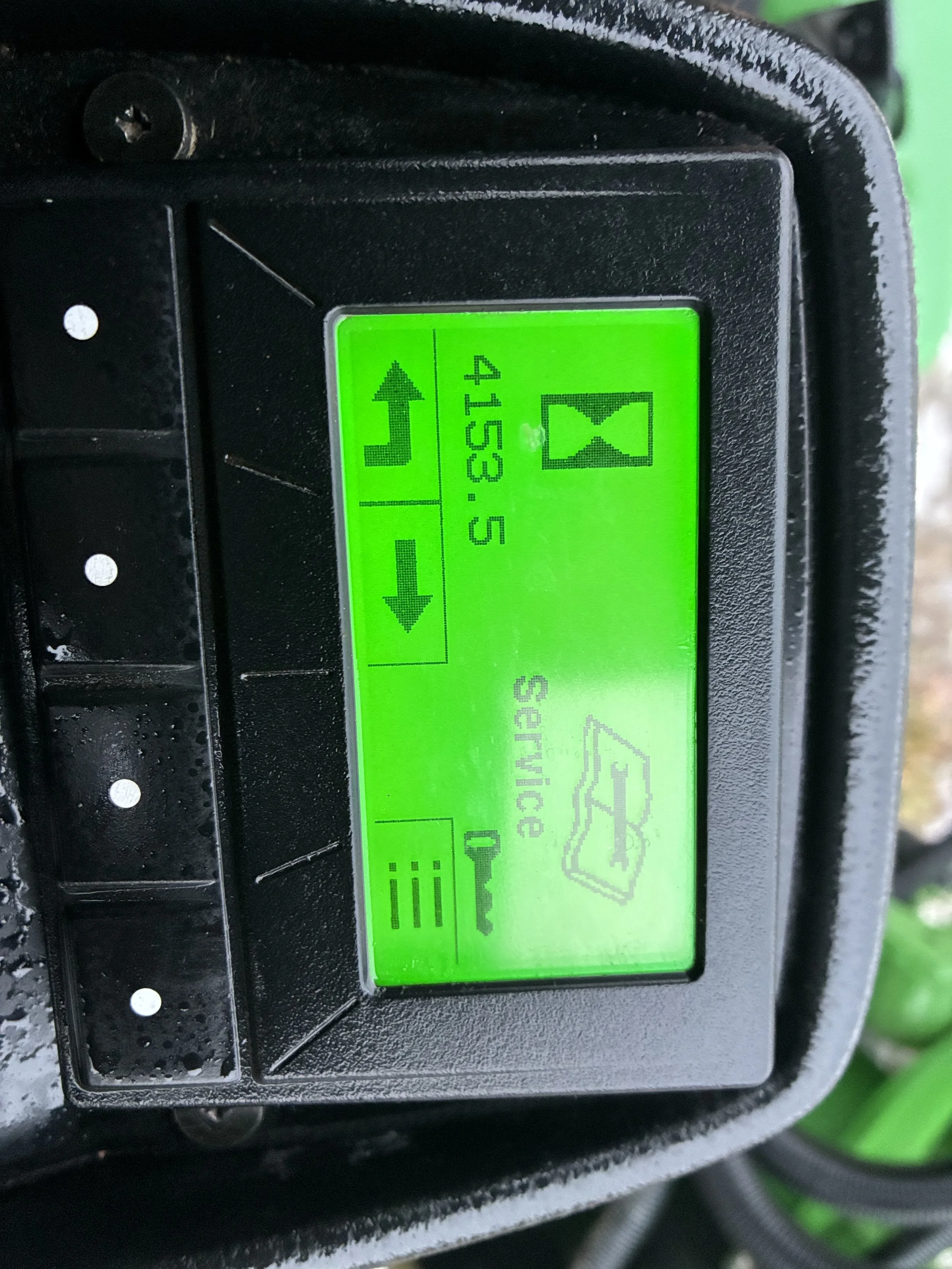

TechControl Display: For diagnostics and machine settings
Weight Transfer Control: Improves traction or contour following
LoadMatch System: Optimizes power distribution in tough conditions
Operator Station: Air Ride suspension seat with armrests
