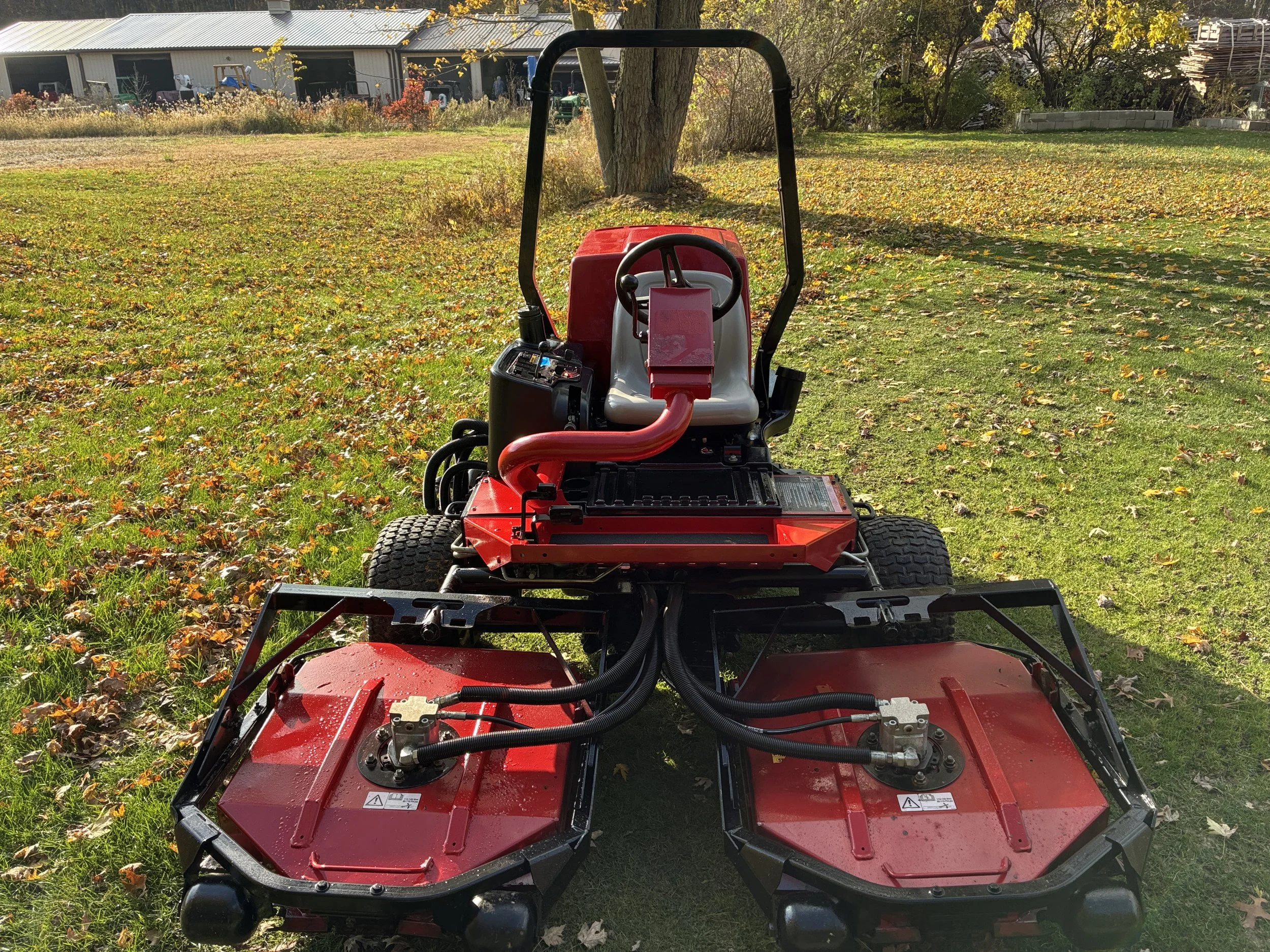

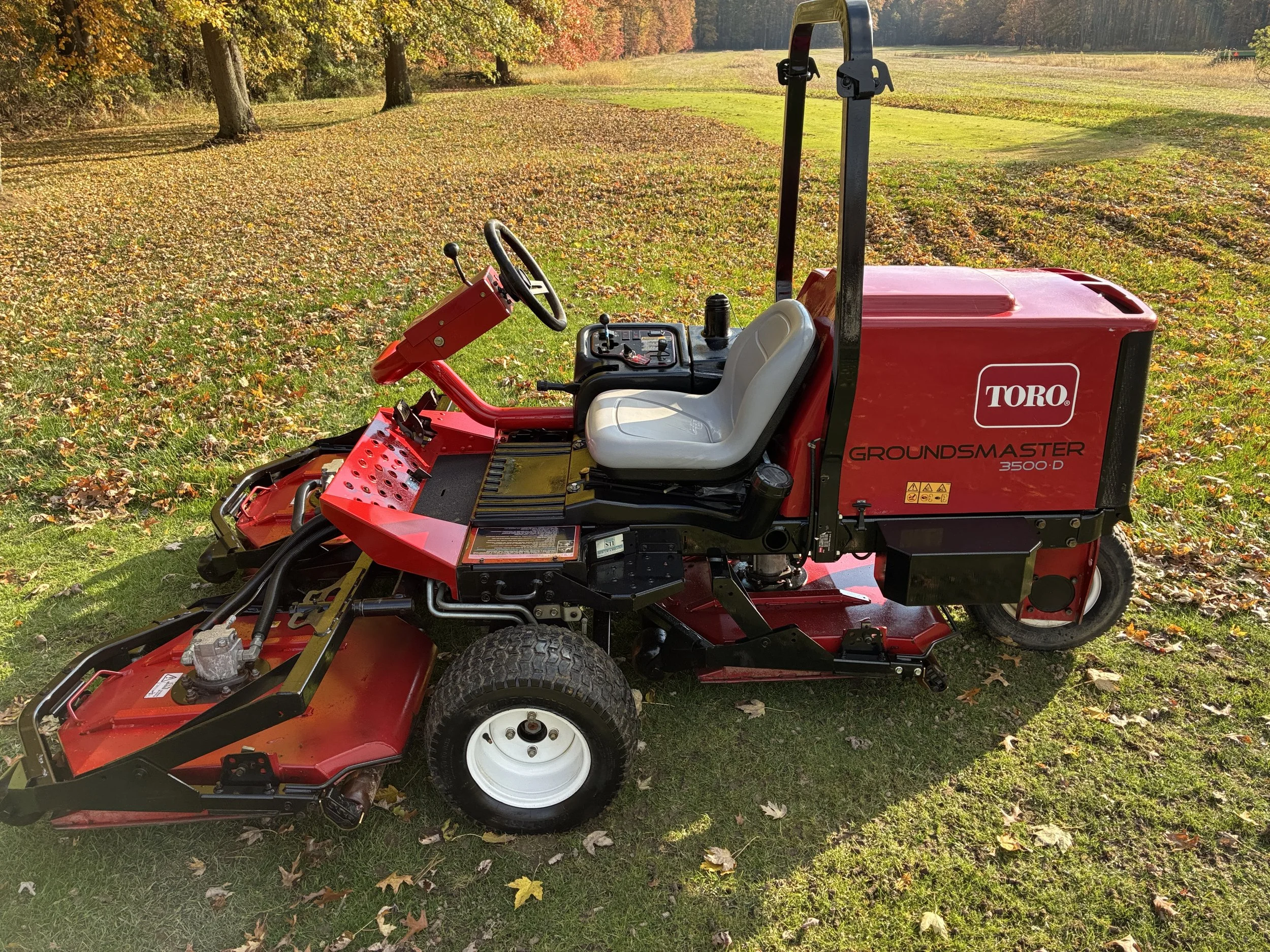

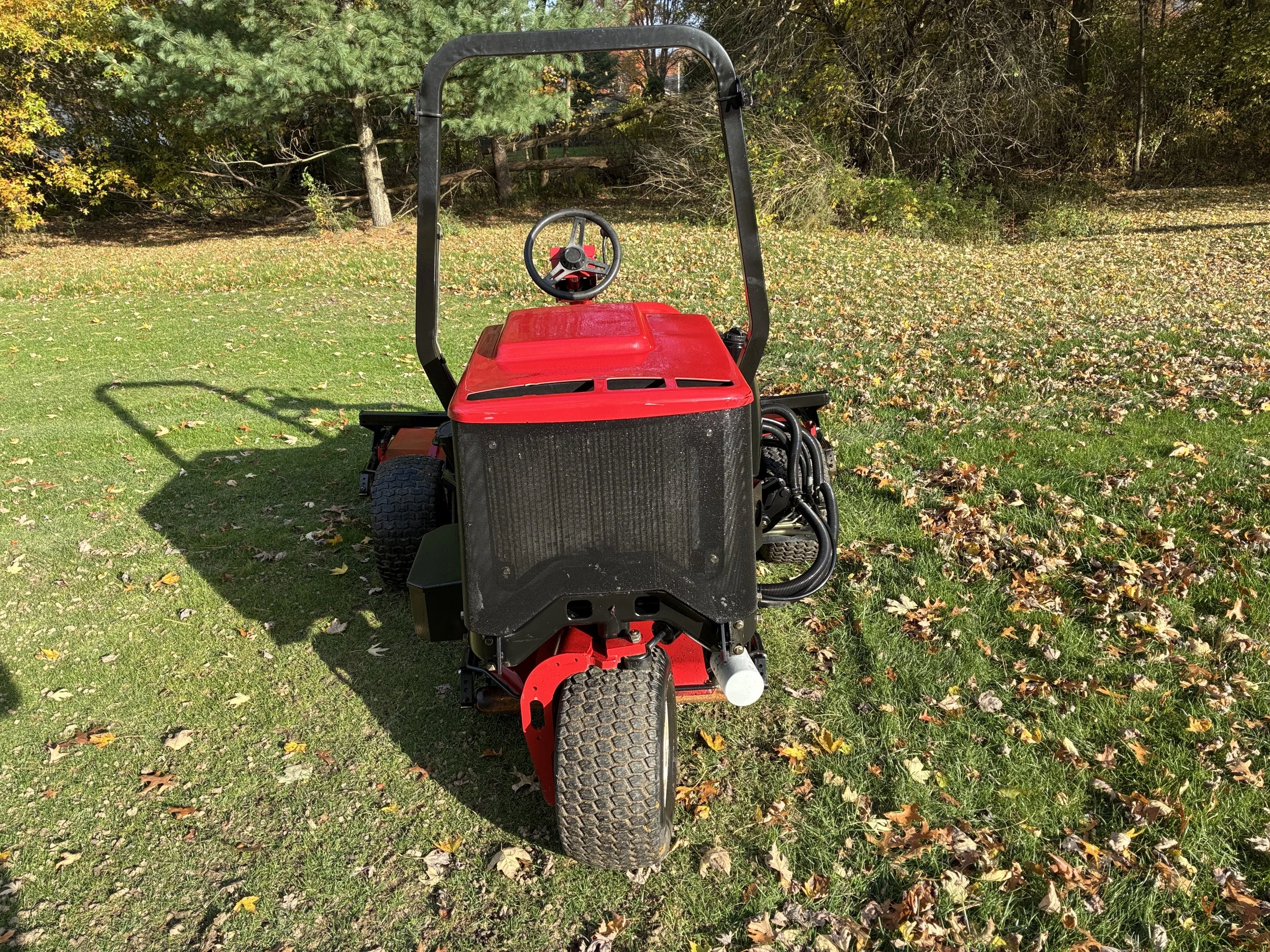

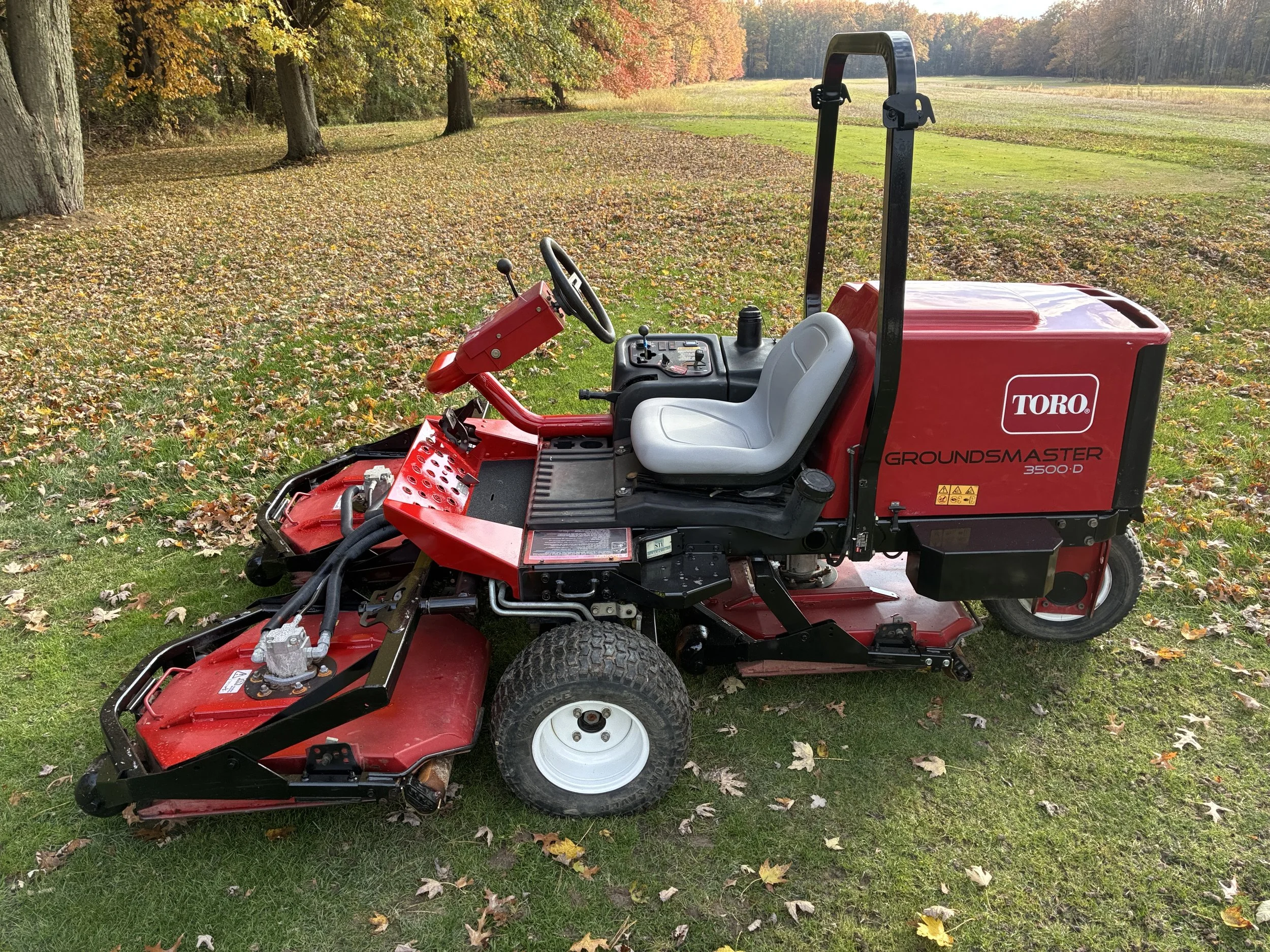

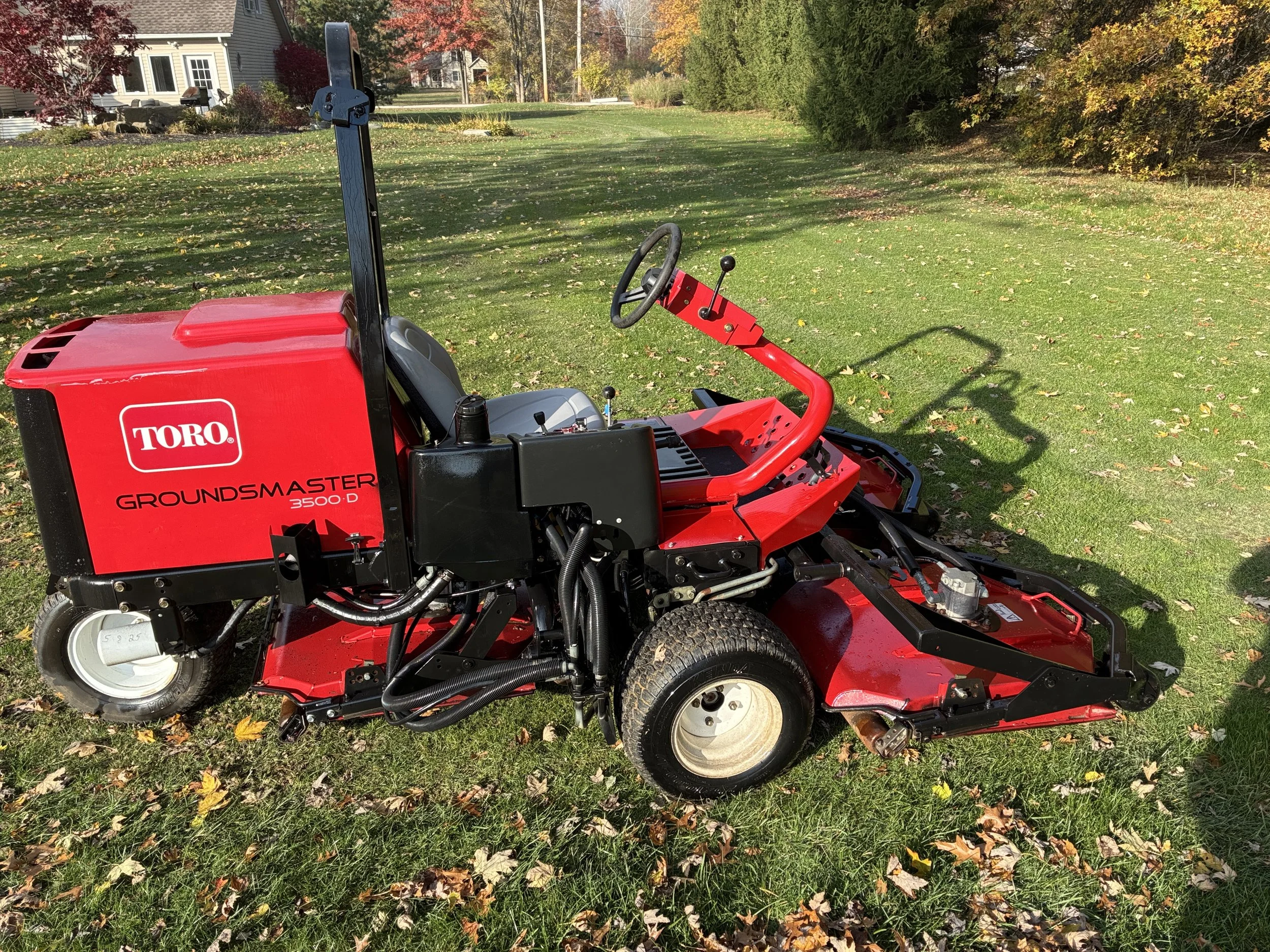

2013 Toro 3505 D NON sidewinder Hood has been replaced cleaned up new blades deck rollers, skid plates rollers and axles as needed. New air filter and new seat.
The 2013 Toro Groundsmaster® 3505-D is a commercial rotary mower designed for precise trimming on sports fields, golf courses, and commercial grounds. It features a three-wheel design
Engine
Engine: Kubota® 3-cylinder, liquid-cooled, diesel engine.
Power: 24.8 hp gross, at a rated speed of 3000 rpm..
Displacement: 1123cc.
Fuel capacity: 11 gallons
Cooling: Rear-mounted, cross-flow 4-row radiator.
The mower uses three 27-inch Contour™ Plus rotary decks with full-length striping rollers. The standard cutting width is 68 inches . The height of cut is adjustable from 0.75 to 4 inches ). Controls include a joystick, foot pedals for traction and mowing, and a tilt steering wheel.
The mower features a 3-wheel hydrostatic traction drive. Mowing speed ranges from 0 to 6 mph , while transport speed is 0 to 9 mph . It is equipped with Turf Tread tires on the front and rear.
The weight of the mower with cutting units is approximately 2,110 lbs. Dimensions include a length of 116 inches , a width of 71.8 inches or 75.8 inches depending on the cut width, and a height of 76 inches with the ROPS. The wheelbase is 59.5 inches .
